Emtek Trenton 10-3/4" Keyed Brass Door Handle-Plate Set

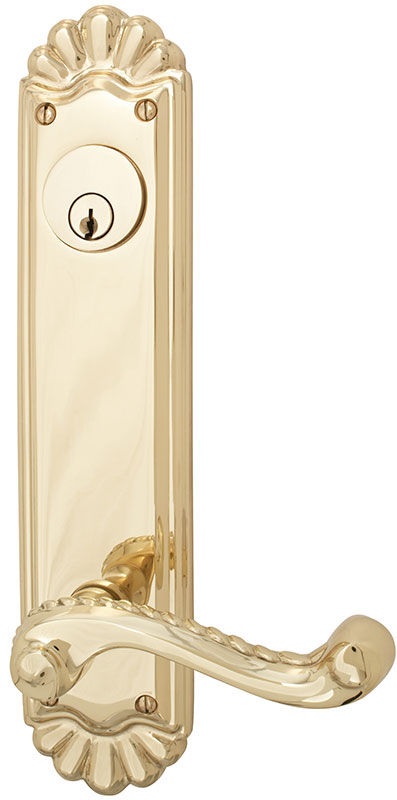

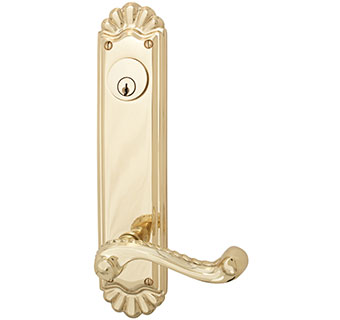

Emtek 10-3/4" Trenton Style Brass Door Handle-Plate
(Shown in Polished Brass finish with Rope lever)

Price: Add Item to Cart to View Price - Why do I have to do this?

Select your options below to modify your Emtek Trenton handle-plate:

Function: Click here for function help.
Finish Color: Click finish icons below to preview samples.
Handle Style: Click here to preview handle styles.
Handing: Click here for handing help.
Keying: Click here for keying help.
Backset: Click here for backset help.
Strikeplate: Click here for strikeplate help.
Faceplate: Click here for faceplate help.
Quantity:
... FREE shipping on orders over $99!
Click on a finish below to view sample images:
Oil Rubbed Bronze Sample
Oil Rubbed Bronze
Satin Nickel Sample
Satin Nickel
Polished Brass Sample
Polished Brass
French Antique Sample
French Antique
Pewter Sample
Pewter
Polished Chrome Sample
Polished Chrome

  • Product Details
  • Warranty
  • Installation Guides

Door needs two standard 2-1/8" bores with 5-1/2" center-to-center hole spacing.

Emtek locks have Schlage-keyed cylinders - only Schlage keys are compatible with Emtek locks.

Single-cylinder fits doors 1-5/8" to 2-1/8" thick. For thicker doors up to 2-3/4", specify during checkout.

Double-cylinder fits doors 1-5/8" to 2" thick. For thicker doors up to 2-5/8", specify during checkout.

Single-cylinder locks have a keyed-cylinder on the exterior side, and a thumb-turn on the inside. The single-cylinder function is the most common, providing exterior security, but the thumb-turn provides safety for an easy exit in case of fire or other emergency.

Double-cylinder locks are commonly used on doors with glass panels, or nearby windows, to prevent intruders from reaching through the glass to unlock the door (as a key is required to unlock the bolt from both the inside and outside of the door). However, safety concerns are raised with double-cylinder locks as it is more difficult to unlock the door from the inside when trying to escape in case of fire (because a key is required to open the locked door). In most cases we do not recommend double-cylinder locks.

Product Contents:

This complete door handle-plate set includes everything you need for one door:

  • 2 handle-plates with selected handle attached (1 for each side of the door)
  • 1 Schlage-keyed cylinder, housing collar (2 for double-cylinders)
  • 1 hardened steel bolt with brass faceplate attached
  • 1 brass trim strikeplate for bolt
  • 1 heavy-duty steel understrike
  • 1 latch
  • 1 strikeplate
  • 1 faceplate
  • 1 screw pack (includes mounting screws for rosette, strikeplate, faceplate)
  • Dummy mounting plates (with dummy sets only)

Emtek Trenton Keyed Door Handle-Plate Product Features:

Emtek's brass door plates are forged (not cast or stamped) from solid brass to yield thick and heavy products for a truly solid look and feel.

Emtek brass door handles and plates are hand-buffed for maximum polish.

Emtek's glass door knobs are lead crystal. Shanks for crystal door knobs are solid brass.

Crystal antique door knobs are hand ground and polished with the same methods used to polish gemstones. These crystal door knobs are silver mirrored on the back side creating a highly reflective interior surface - a design detail that is true to the heritage of these antique door knobs.

French Antique, Pewter, and Oil Rubbed Bronze finishes are hand relieved to give each part individual character.

Emtek's Oil Rubbed Bronze finish is underlain with copper. Normal use will produce natural relief of the oxidized finish and reveal highlights on raised portions of the door handle design.

Emtek's latch nose-bolts, strikeplates, and faceplates are solid brass.

Emtek lever door handles have a fixed stop at the top of their stroke so that it only rotates downward, not up-and-down like most products you find at large home improvement centers.

Emtek door knobs and lever door handles are supported by springs behind the rosette or backplate that will actively return the door handles back to their original "rest" position to prevent sag.

Latches are heavy-duty diecast construction with strong internal springs and solid brass nose bolts.

A plastic bushing located in the joint between handle and rosette ensures a friction free wear surface - preventing metal from bearing on metal and provides smooth long-lasting operation.

Door handles are connected to the rosettes and backplates with a permanent clip.

Spindles are spring-loaded "half-spindles" pre-installed into the base of each door handle.

Each Emtek door handle has a set screw which, when tightened, eliminates wobbling of the door handle.

The threaded tubes inside an Emtek lock are machined brass.

Emtek Products, Inc. warrants all items to be free of finish/mechanical defects for 5 years from the purchase date given the following conditions are upheld:

  1. The item has not been modified, abused, misused, or improperly installed, maintained, and/or repaired.
  2. The item does not have an "aging" finish applied to it. Meaning, there is no warranty for items with Oil Rubbed Bronze, French Antique, Rust, Deep Burgundy, Medium Bronze, Flat Black Patina and Silver Patina finishes.
To make a warranty claim please contact us at Homestead Hardware.
