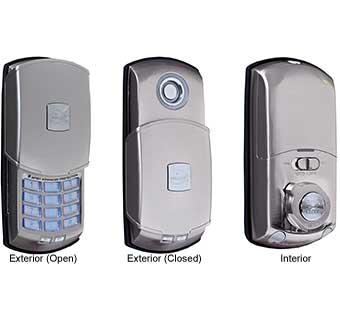

Delaney Co. Advanced Protection AP501 Door Keypad Lock

Delaney Co. Door Hardware Delaney Co. Advanced Protection AP501 Door Keypad Lock
(Shown in Satin Nickel finish)

Price: $ 340.00

Select your options below to modify your Delaney AP501 keyless door lock:

Finish Color: Click finish icons below to preview samples.
Strikeplate: Click here for strikeplate help.
Faceplate: Click here for faceplate help.
... FREE shipping on orders over $99!
Click on a finish below to view sample images:
Oil Rubbed Bronze Sample
Oil Rubbed Bronze
Satin Nickel Sample
Satin Nickel
Polished Brass Sample
Polished Brass
  • Product Details
  • Installation Guides

Secure your home with one of the most advanced security locks on the market!


  • Interior Trim Dimensions: 6-1/4" H x 4" W x 1-1/2" D
  • Exterior Trim Dimensions: 5-3/4" H x 3" W x 1-1/8" D
  • Throwbolt: 1"
  • Required Door Thickness: 1-3/8" - 2"
  • Standard 2-1/8" Door Prep
  • 2-3/8" or 2-3/4" backset
  • Power: 6V
  • Battery Life: 1 yr.
  • Temp. Power Source: 9V Battery (not included)
  • Operational Temperature Range: -35º to 130º
  • Passcode: 3-20 digits
  • Max. Number of Tag Keys Supported: 20
  • Warranty: 2 years

Product Contents:

This complete keyless lock includes everything you need for one door:

  • 1 Exterior trim with keypad, key sensor
  • 1 Interior trim with thumbturn/lock status
  • 2 Tag Keys
  • 1 deadbolt latch with adjustable backset
  • 1 faceplate
  • 1 strikeplate
  • 1 heavy-duty understrike
  • 1 strike-lining box
  • 1 screw pack (includes mounting screws for rosettes, strikeplate, faceplate)
  • 4 AA-batteries

Delaney Co. AP501 Electronic Door Lock Product Features:

Protects against lock-picking or vandalism by eliminating the conventional keyhole

Provides two types of keyless entry access 1) Digital tag-key entry and 2) Keyless entry using passcode.

Auto lock feature that automatically locks your door when it's closed.

Master function using a master passcode and master Tag Key included.

Intruder alarm in case of forced entry without a valid Tag Key or passcode.

Touchpad buttons glow in the dark for night-time visibility.

Low-battery alert signals time to replace batteries.

If batteries are dead, apply the tips of a standard 9V battery to the power terminal on the exterior side for a temporary supply of power to the lock.

Easy to install - you only need a screwdriver.

Can be used with existing knobs, levers, and entry door handles.

Are you looking for new doors for your home? Shop interior doors and wood doors at today!
