Interior Handle Functions:

---

Passage:

Choose this function for general access doors that require a latch, but no locking feature. Commonly used for hallway doors, closet doors, laundry room doors, pantry doors, etc.







Privacy:

Choose this function for use on doors that require some privacy with a simple locking feature. Commonly used for bedroom doors and bathroom doors.









Dummy (pair):

A dummy pair indicates a pair of handles that have no latching or locking functions. They are surface mounted to a door simply to give the door a handle to pull it open. Dummy pairs are usually used for the inactive door in a double-door set and other doors that need a handle on both sides, but no latching or locking function.





Dummy (single):

A single dummy handle indicates one handle that has no latching or locking function. It is surface mounted to a door simply to give the door a handle to pull it open. Single dummy handles are usually used on closet doors, bifold doors, or other doors where one handle is needed, but no latching or locking function is.





CF Mechanism:

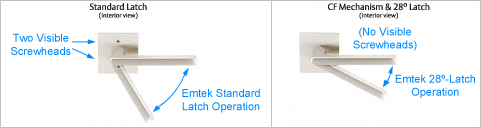

The CF-Mechanism is an upgrade for Emtek passage and privacy knobs or levers. CF stands for "Concealed Fastener". A standard Emtek passage or privacy set will have two visible screwheads on the interior rosette. The CF-Mechanism conceals those screwheads for a nice, clean appearance. (Emtek dummy handles always come standard with concealed screws.) In addition, the CF-Mechanism also comes with a 28-degree rotation latch. Refer to the sample images below for the appearance of a standard handle versus a handle with the CF-Mechanism upgrade.
